Antenna leabharliosta RFID
RFID · CUNTÓIR / SEILBH LEABHAIR ANTENNA
tanaí agus álainn
Tacaíocht a thabhairt do radaíocht aontreo/dé-bhealach

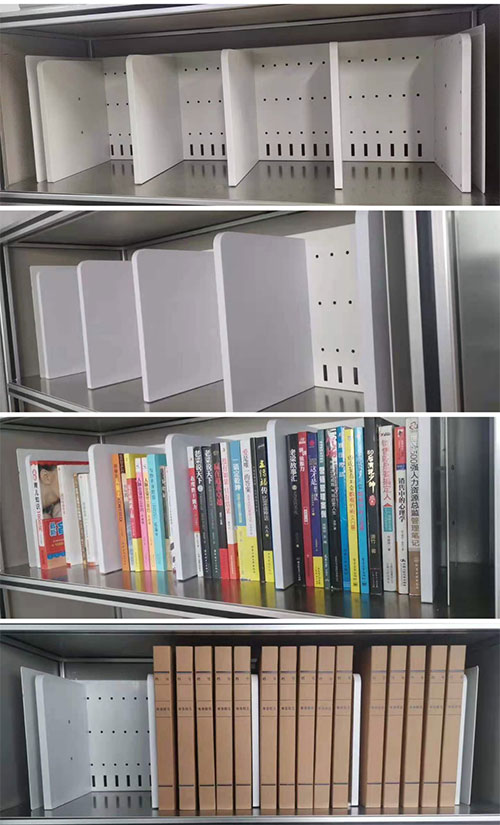

Bainistíocht chliste leabharlainne/bainistíocht cartlainne
Tá an treo ina iomadaíonn tonn leictreamaighnéadach an antenna ciorclach polaraithe sa spás treallach, agus níl aon cheanglas dian ar an treo ina gcuirtear na clibeanna leictreonacha, agus is féidir iad a chur go treallach.

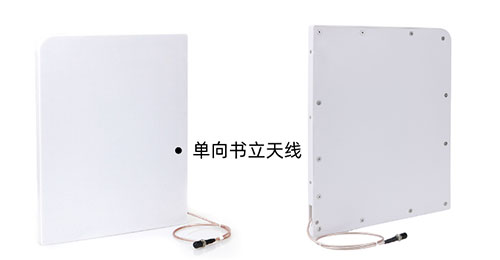

ONE-WAY RADIATION
Frequency range: 902-928MHz
Gain: -1.5dBi
Polarization method: circular polarization
Half power angle:Hor:100°Ver:100°
VSWR: ≤2.0
Impedance: 50Ω
Axial ratio: ≤3dB
Connector: RG316/40cm/SMA-K
Connector position: side lead out

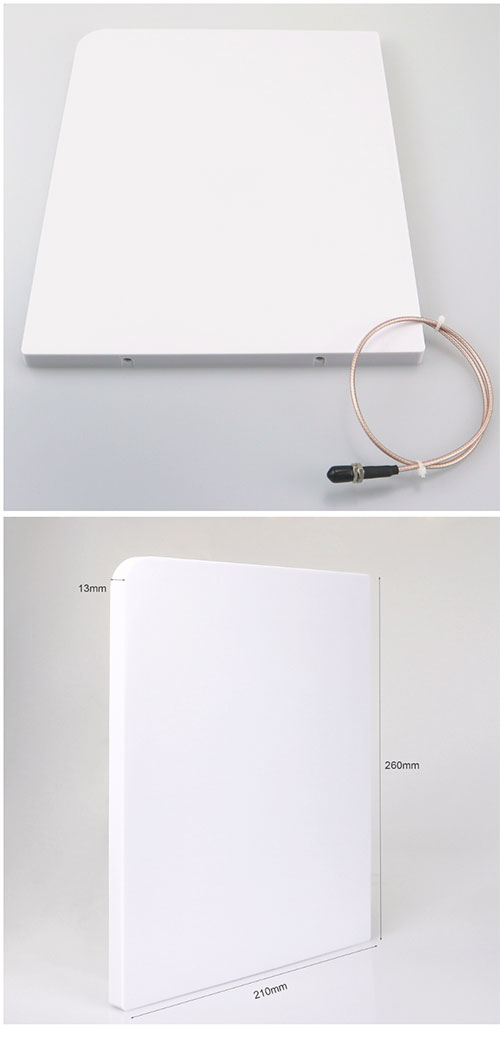

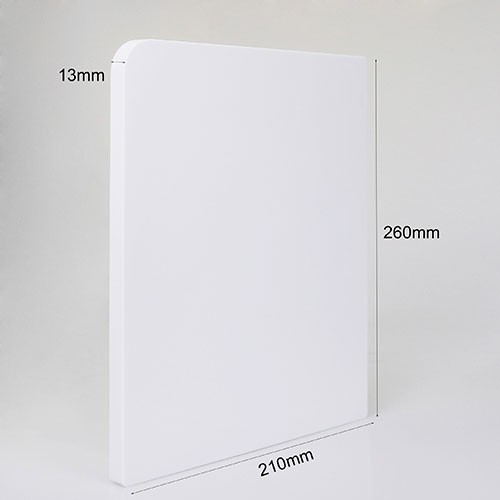

Antenna size: 260*210*13mm
Net weight: 0.34kg
Radome Color: White
Radiation material: FR4 copper clad laminate
Working temperature: -40~55℃
TWO-WAY RADIATION
Frequency range: 902-928MHz
Gain: -4dBi
Polarization method: circular polarization
Half power angle:Hor:120°Ver:80°
VSWR: ≤2.0
Impedance: 50Ω
Axial ratio: ≤3dB
Connector: RG316/40cm/SMA-K
Connector position: side lead out
Antenna size: 260*210*13mm
Net weight: 0.4kg
Radome Color: White
Radiation material: FR4 copper clad laminate
Working temperature: -40~55℃
